Art Applewhite Rockets
Stealth Kits

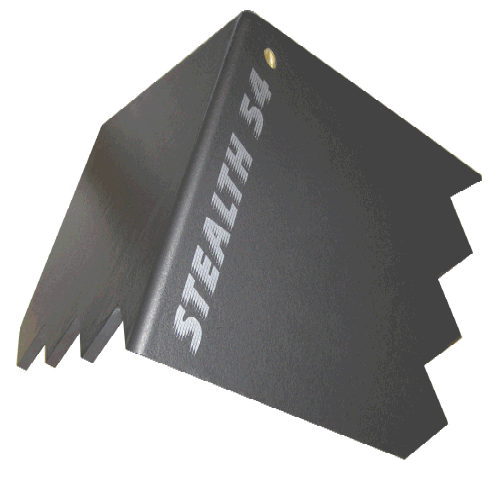

54 mm Stealth in flight (click on picture for a larger image)

Super Stealth (click on picture to enlarge)
54 mm Stealth kit (includes shipping in the USA) - $120 each
1. Build and fly the free 29 mm Priority Steath first.
2
. Use 54 mm motors only.
3. Do not use motor adapters.
4. Do not use motors longer than 16 inches.
5. Do not use motors weighing more than 1700 grams loaded including casings and spacers.
6. Use motors with an average thrust of at least 90 N-sec but no more than 700 N-sec.
7. Use motors with a maximum thrust of less than 1000 N.
8. Check your motor's specifications carefully before using it in the rocket.

Color
38 mm Stealth kit - $40 each
1. Build and fly the free 29 mm Priority Steath first.
2
. Use 38 mm motors only
3. Do not use motor adapters.
4. Do not use motors longer than 8 inches.
5. Do not use motors weighing more than 400 grams loaded including casings and spacers.
6. Use motors with an average thrust of at least 35 N-sec but not more than 170 N-sec.
7. Use motors with a maximum thrust of less than 220 N.
8. Check your motor's specifications carefully before using it in this rocket.
Color

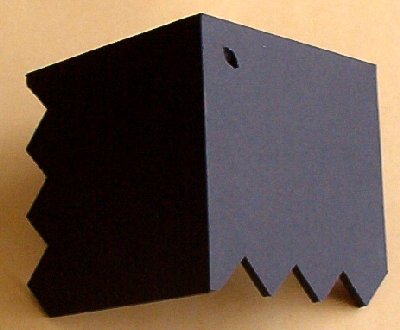

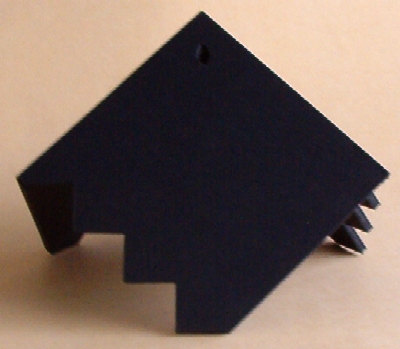

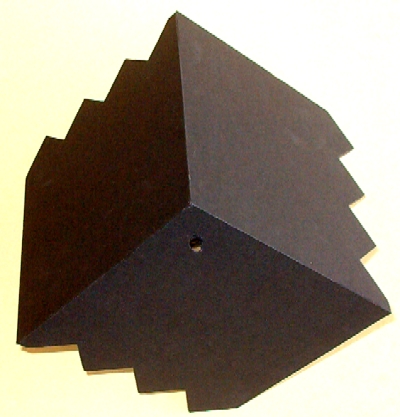

29 mm Stealth
In your choice of all Black, all White or
Salt & Pepper (Two Black and one White sides with a White bottom)
Color
Super Stealth $6 each
Can be built to use either
18 mm or 24 mm rocket motors.
Available in 4 colors
White, Orange, Green and Pink
Color
Free Download


Super Stealth
 3.75 inches high, 5 inches wide, weight 0.5 oz  - Recommended motors: 18mm version: B4-2,B6-0,B6-2, C6-0,C6-3  24mm version:  C11-0, C11-3, D11-P, D12-0, D12-3, E9-4, E9-P and any Aerotech 24mm single use or RMS 24/40 reload.  This rocket can be built to use either 18mm (A, B & C) or 24mm motors (C, D & E).  You decide at build time which size to make.

13mm Free Download
3.0 inches (7.6cm) high, 4 inch (10 cm) span, Weight 0.2 oz (5 gm) - Recommended motor: A3-4T, A10-0, A10-3T, A10-PT

All these rockets ascend rapidly and spinning as they leap skyward. They are very stable in flight, even in high winds. At apogee they flip over and descend slowly using aerobrake and helicopter recovery.  Preparation is quick and easy and recovery is foolproof.  These kits are intended for the rocketeer looking for a new challenge and something out of the ordinary. With their high visibility and dramatic ascent and recovery, they are real crowd pleasers. NO long walks to recover your rocket even on a windy day.
