29mm Priority Stealth Rocket
Launch Preparation
Completed rocket with an Aerotech G40-4W motor
Page 1 of the instructions
Page 2 of the instructions
Recommended motors:
Any 29mm single use or reloadable motor with between 20 and 80
Newtons average thrust and a burnout weight of 85 grams or less.
Launch Preparation:

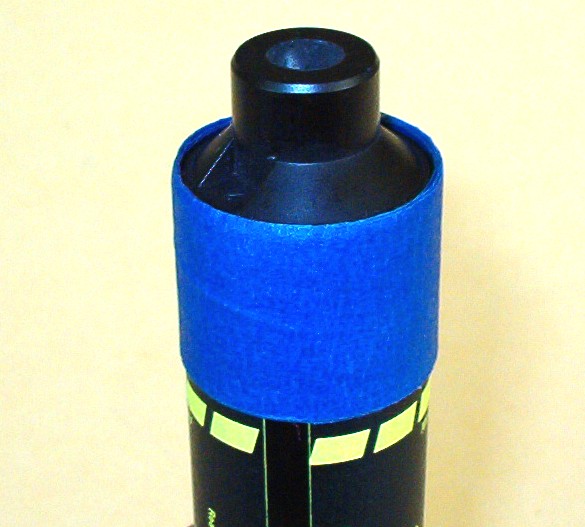

If the motor does not have a built in thrust ring, make one out of 5
layers of masking tape. Make sure the layers are straight and
flat and the tape sticks well to the casing.

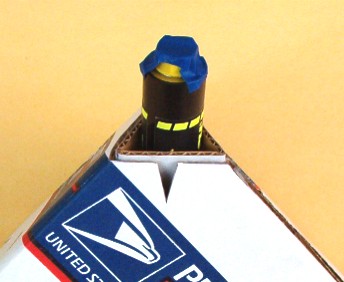

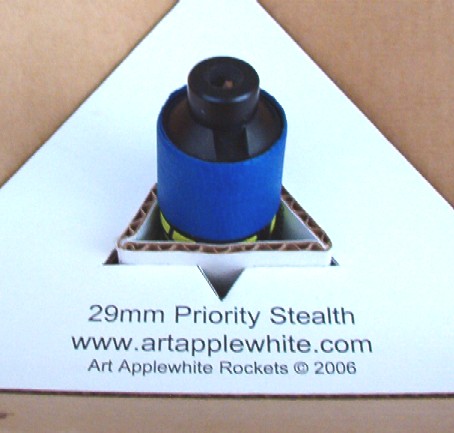

Insert the motor into the Motor Mount. The first time a motor is
inserted into the Motor Mount it will be very tight.
Remove the ejection charge from the motor and plug the ejection port
with a ball of recovery wadding. Hold the wadding in place with
masking tape.
Support the rocket at least 6 inches above the blast deflector to
prevent damage from the back blast. Enjoy!
Please send your comments and suggestions to Art Applewhite at [email protected]
