Art Applewhite Rockets - From Deep in the Heart of Texas
Center of Gravity (CG) and Center of Pressure (CP) for Selected Kits and Motors
 Note: Centers of pressures determined by wind tunnel measurements

24mm Delta with D12-0
24mm Delta with E9-P
38mm Delta with Aerotech RMS 38/240
38mm Delta with Pro38, 1 Grain
38mm Delta with Pro38, 2 Grain
Note: CG determined using RockSim 8.0, CP determined by wind tunnel testing

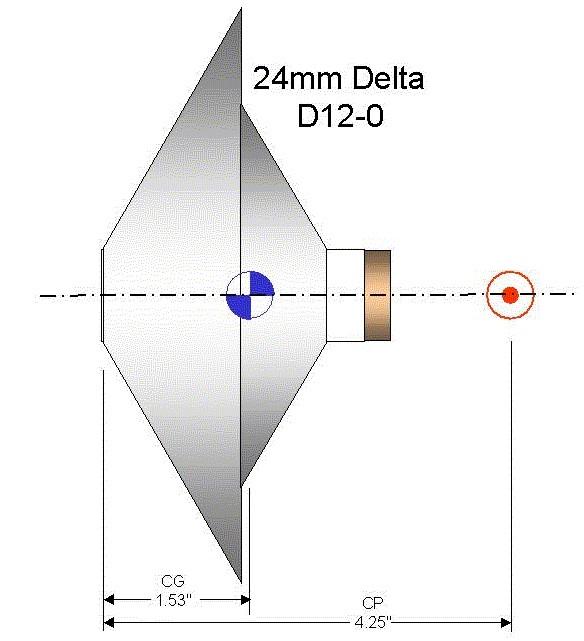

24mm Delta with D12-0

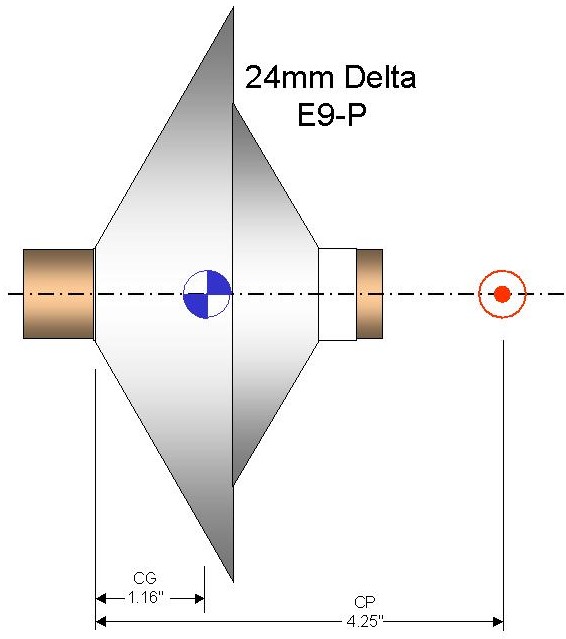

24mm Delta - E9-P

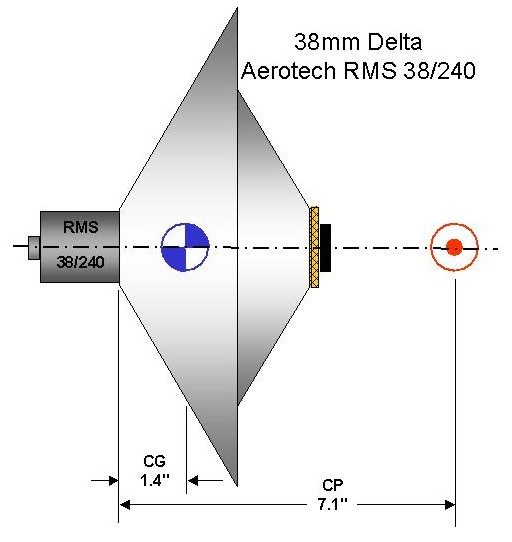

38mm Delta with RMS 38/240

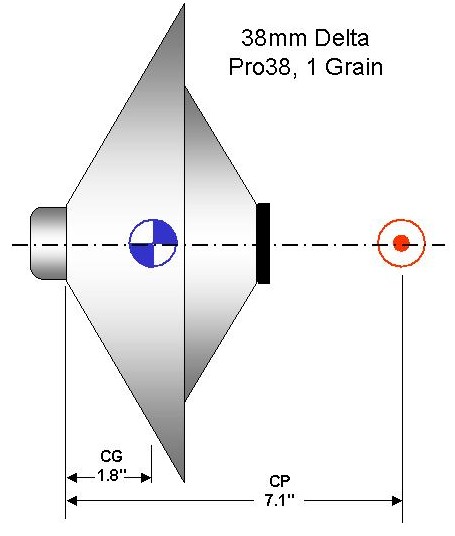

38mm Delta with Pro38, 1 Grain

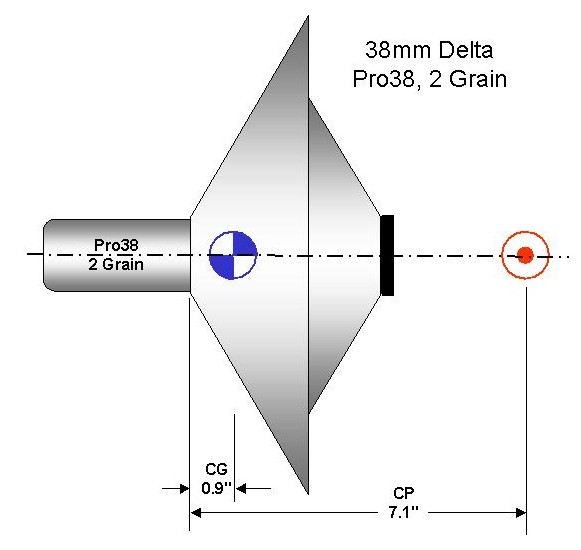

38mm Delta with Pro38, 2 Grain
